SPECIFICATIONS
Prouduct Name
Connect 240
CPU Support
Intel®: LGA 1851/1700/1200/115X/20XX
AMD®: AM5/AM4
Radiator Dimensions
274x120x27mm
Radiator Material
Aluminum
Tube Length
400mm Black Sleeved Tube

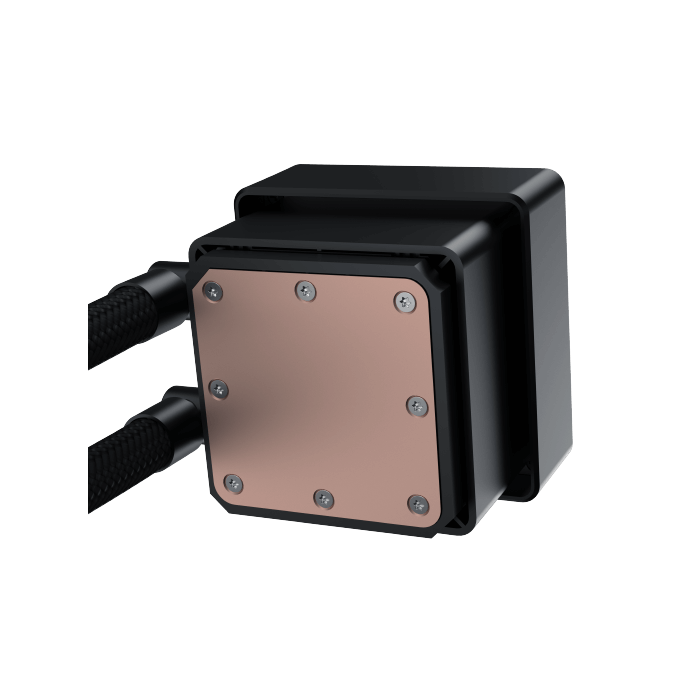

Pump Dimensions
90x76x67mm
Pump Bearing
Ceramic Bearing
Pump RPM
2700±10% RPM
Pump Noise
≤27dBA
Pump Rated Voltage
12VDC
Pump Rated Current
0.48A
Pump Power Consumption
≤5.76W
Pump Physical Appearance

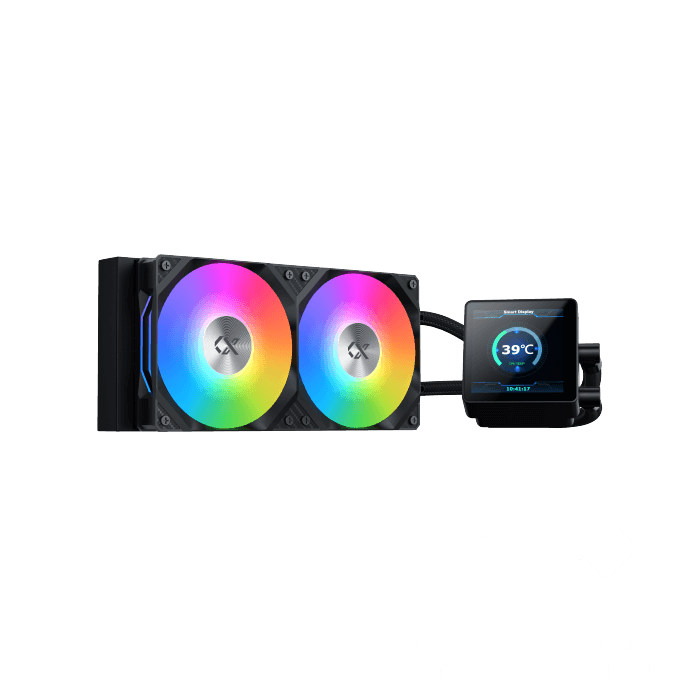

3.4” LCD Pump Head
TDP
280W
Fan Dimensions
240x120x28mm
Fan Physical Appearance
Addressable RGB Rainbow
Lighting Display
Fan Bearing
Long Life Hydro Bearing
Fan RPM
800-2100±10% RPM
Fan Rated Voltage
12VDC
Fan Rated Current
0.43A
Fan Power Consumption
≤5.3W
Fan Airflow
80CFM x2
Fan Air Pressure
3.14mm-H2O
Fan Noise
≤29dBA
