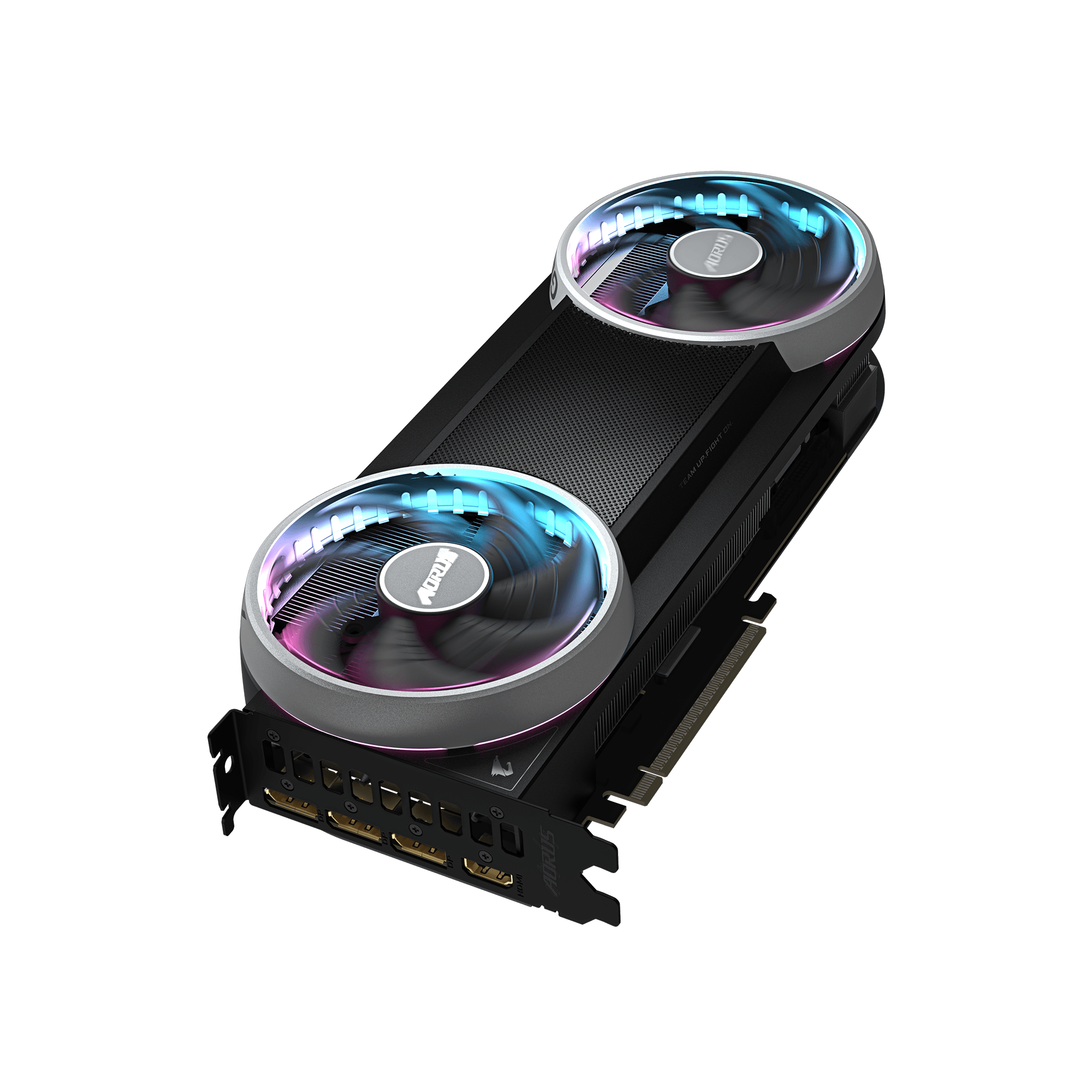

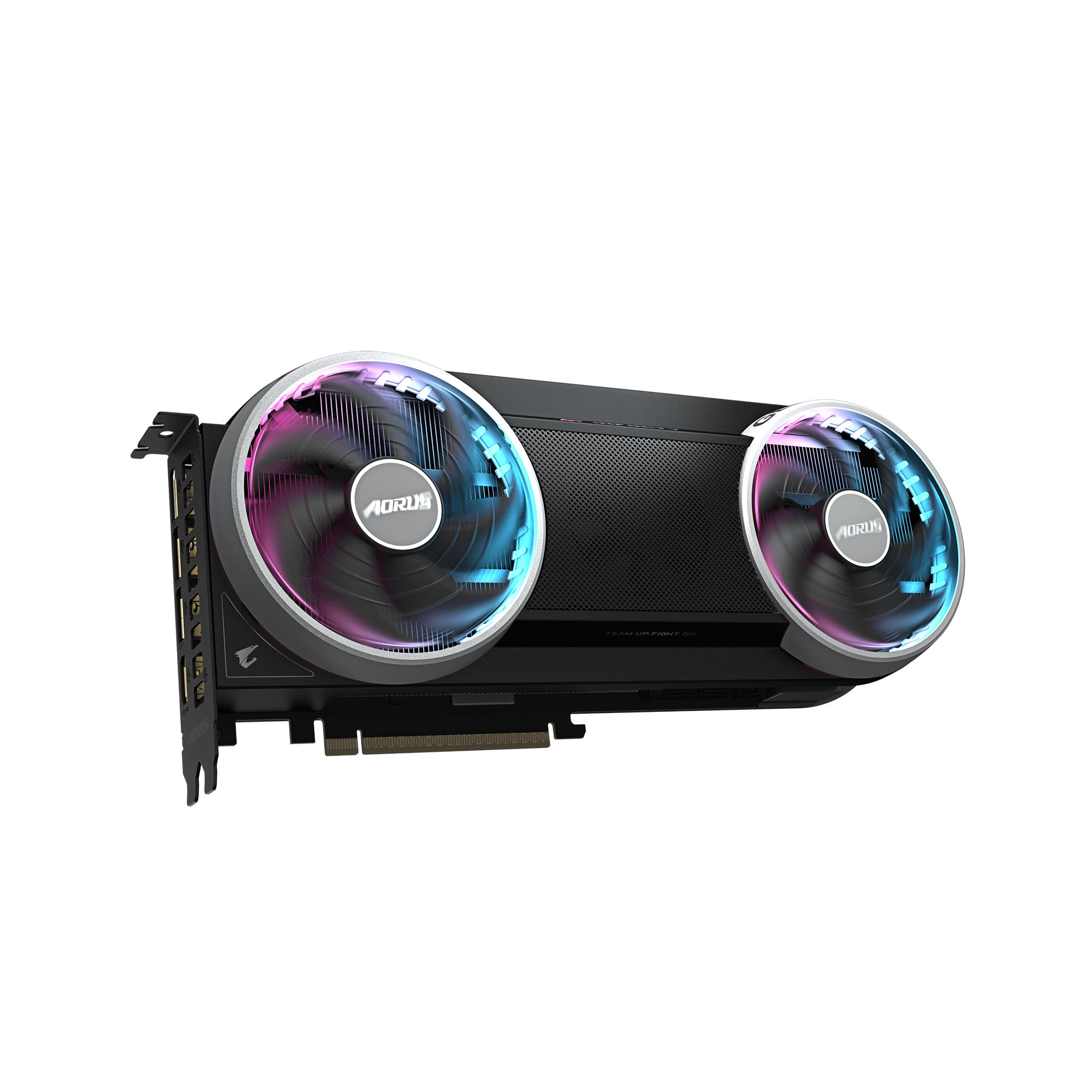

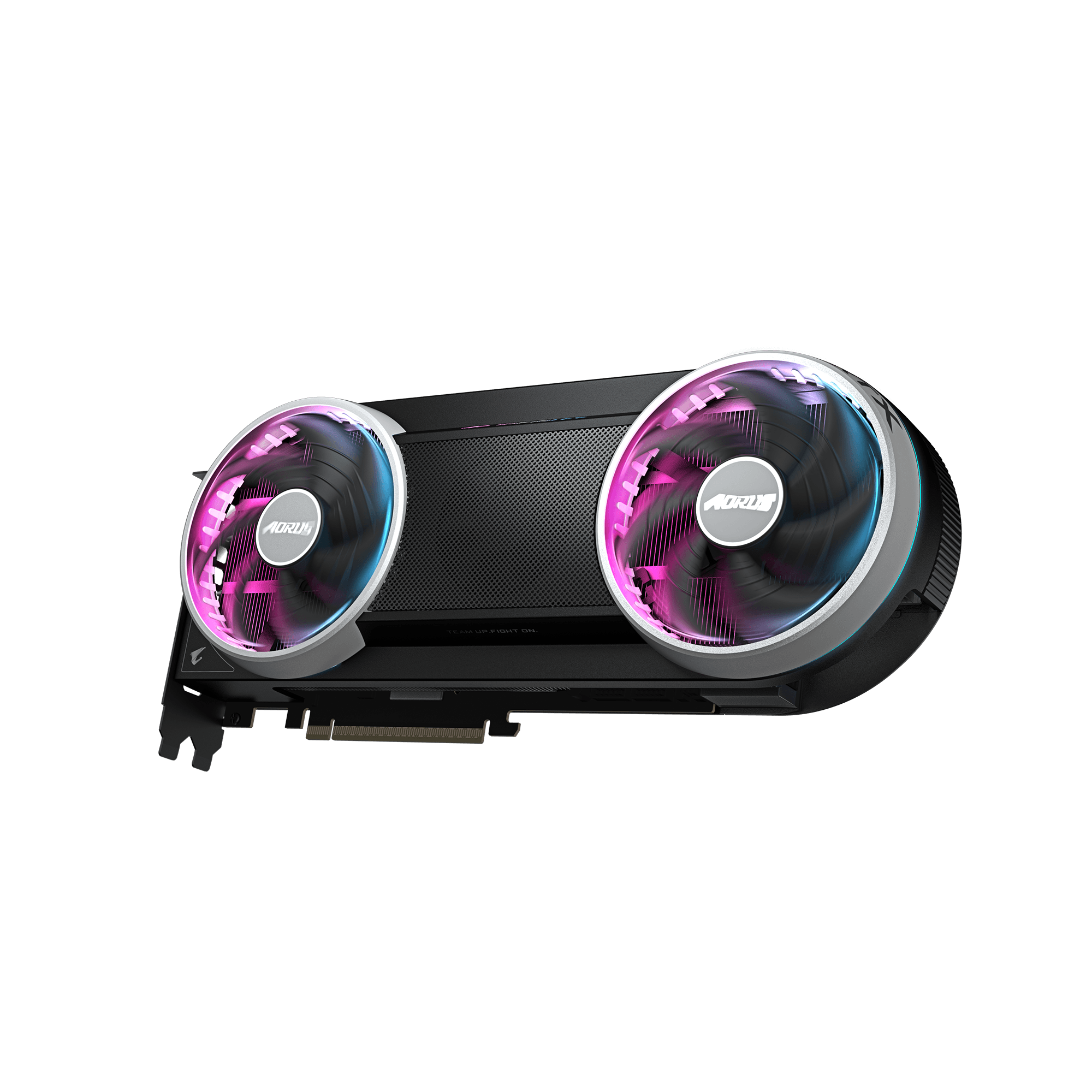

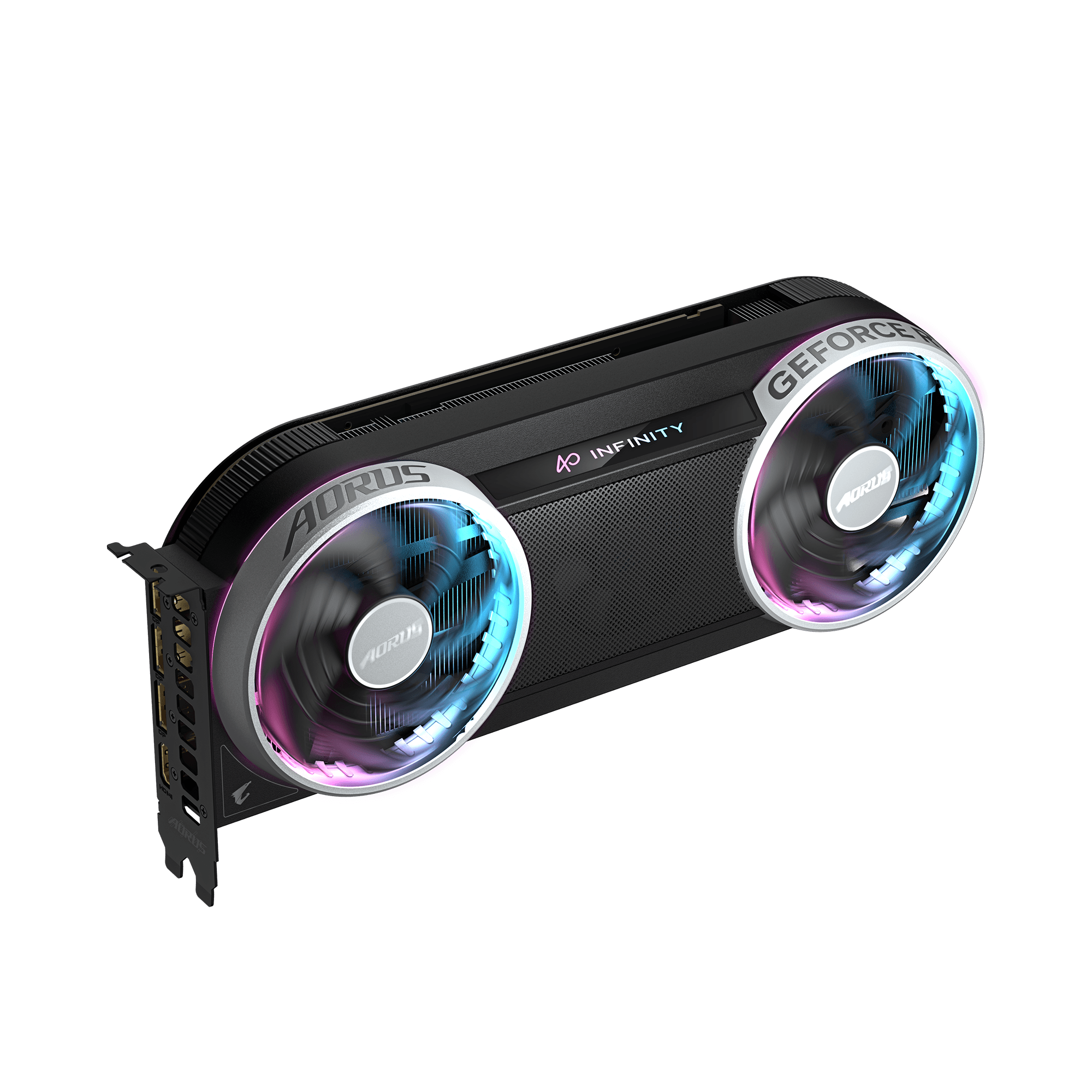

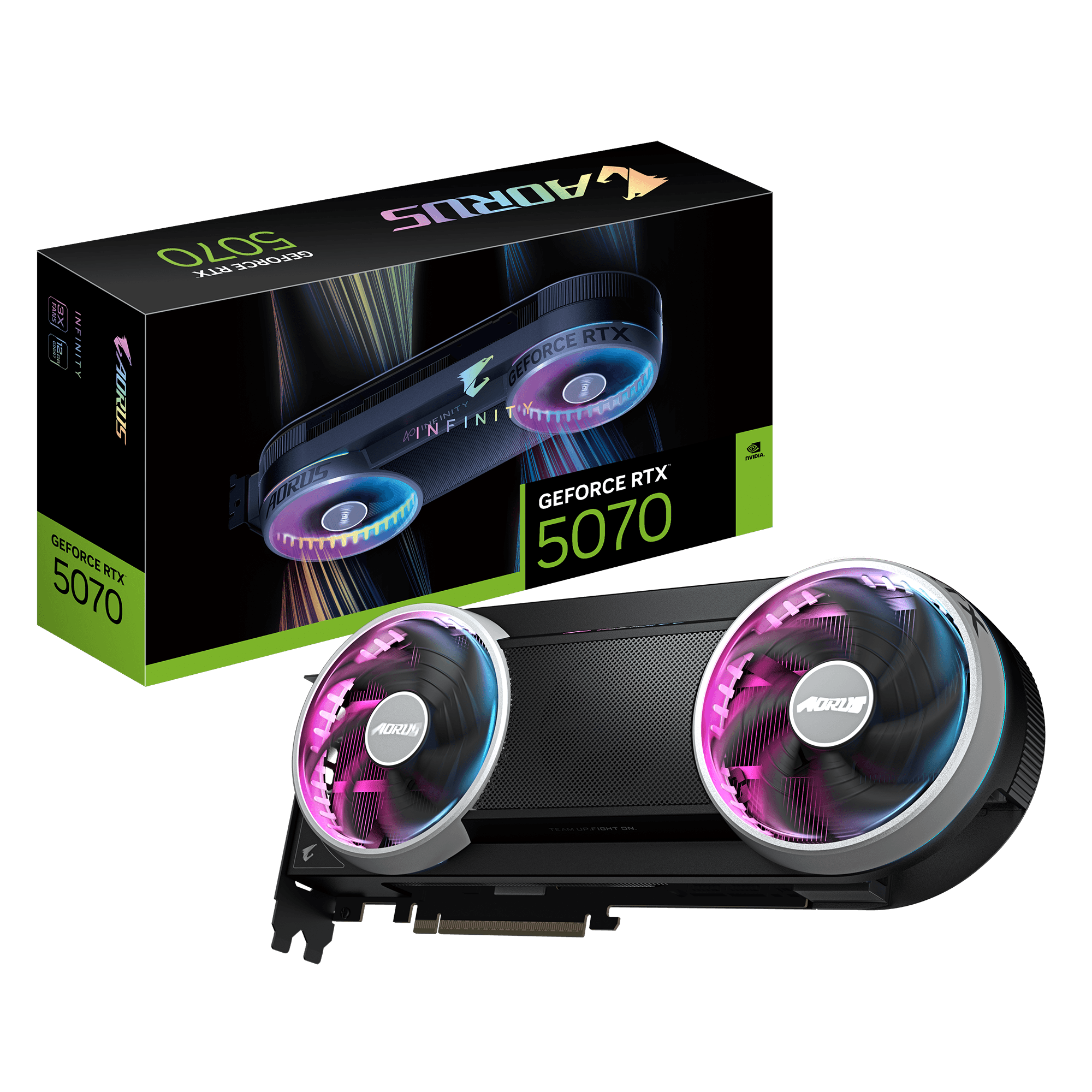

AORUS RTX5070 INFINITY 12GB

AORUS RTX5070 INFINITY 12GB GV-N5070AORUS IF-12GD

Powered by the NVIDIA Blackwell architecture and DLSS 4.5
Powered by GeForce RTX™ 5070
Integrated with 12GB GDDR7 192bit memory interface

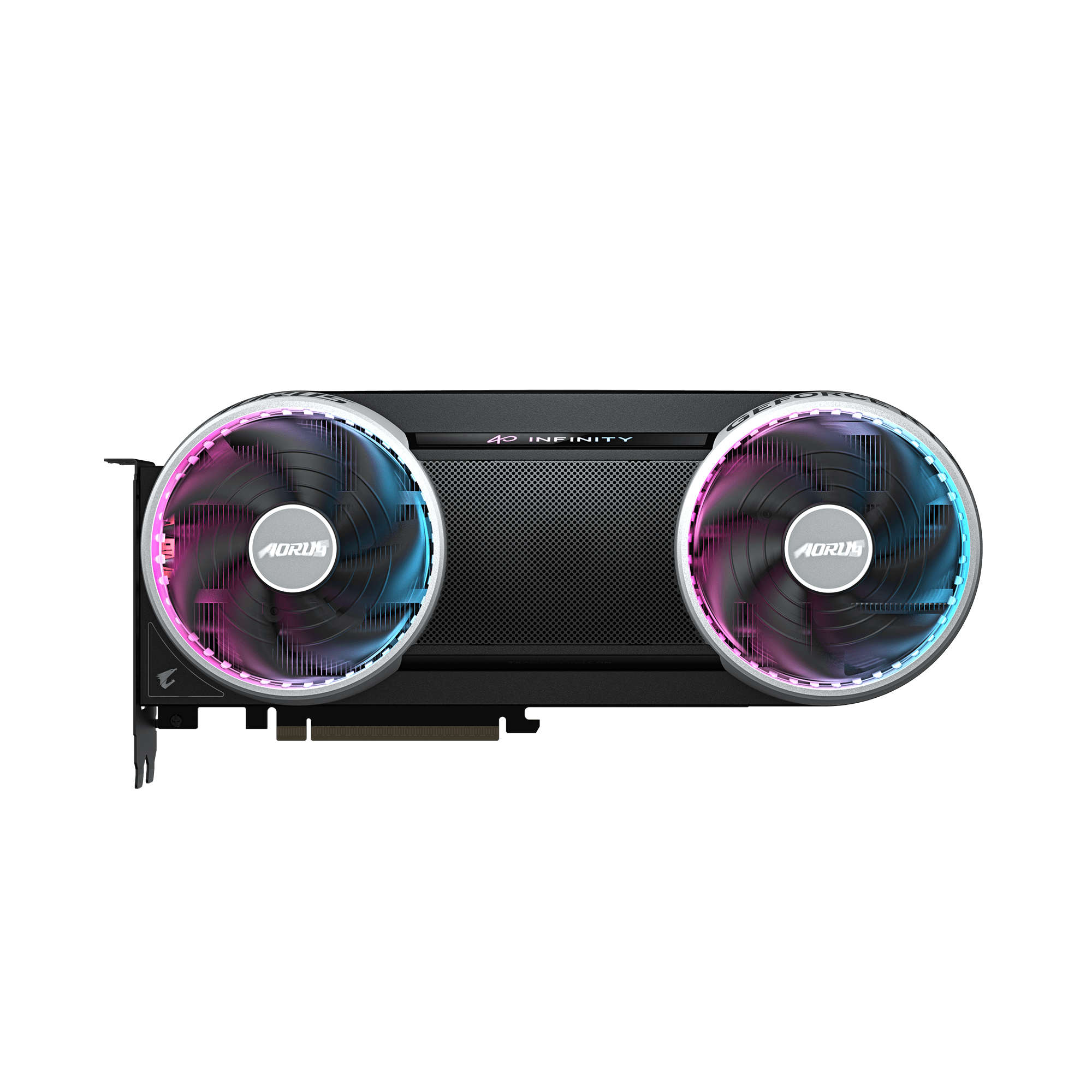

WINDFORCE HYPERBURST cooling system
- Patented Hawk fan design
- Overdrive Fan design
- Composite metal grease for GPU
Compatible with Stealth series

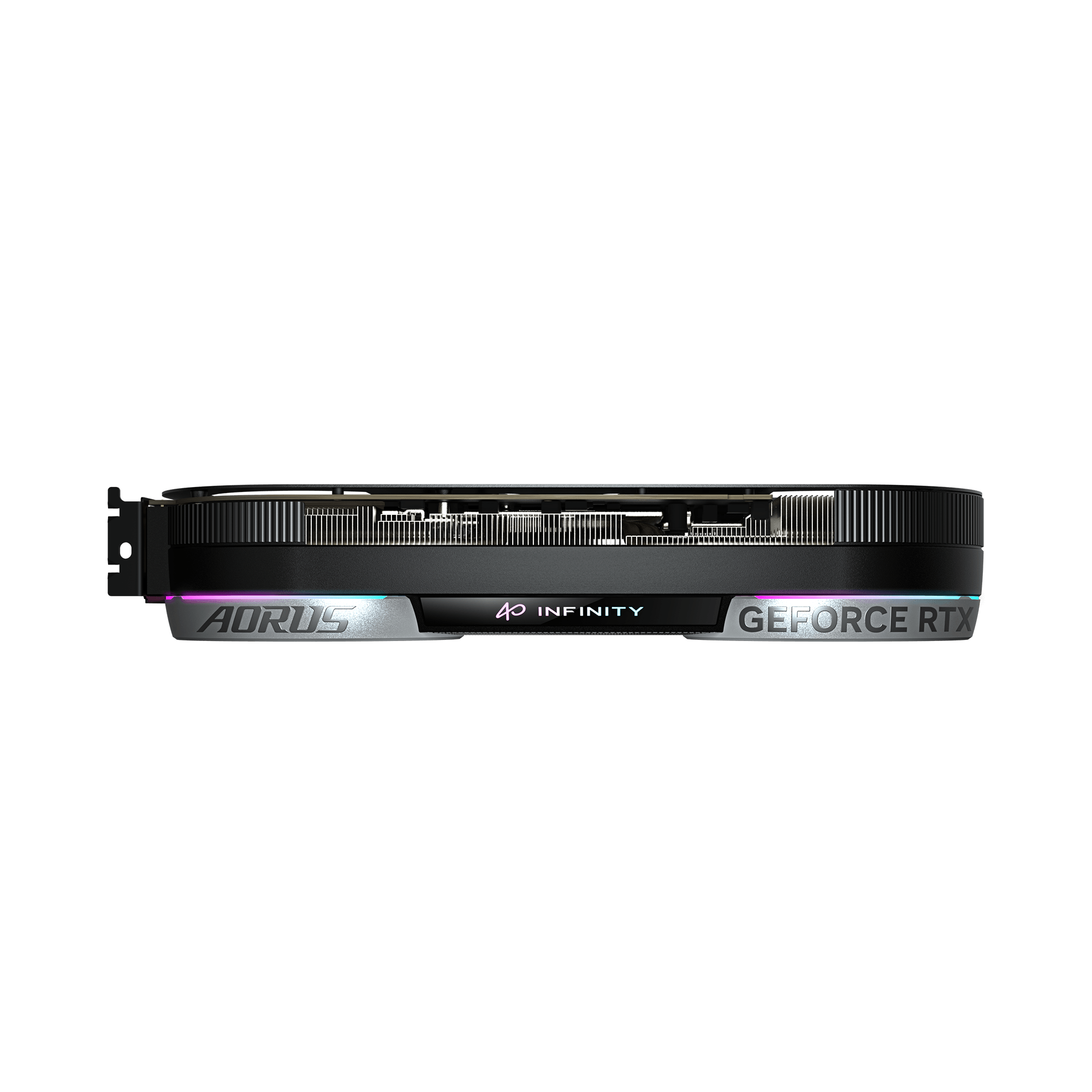

RGB Halo

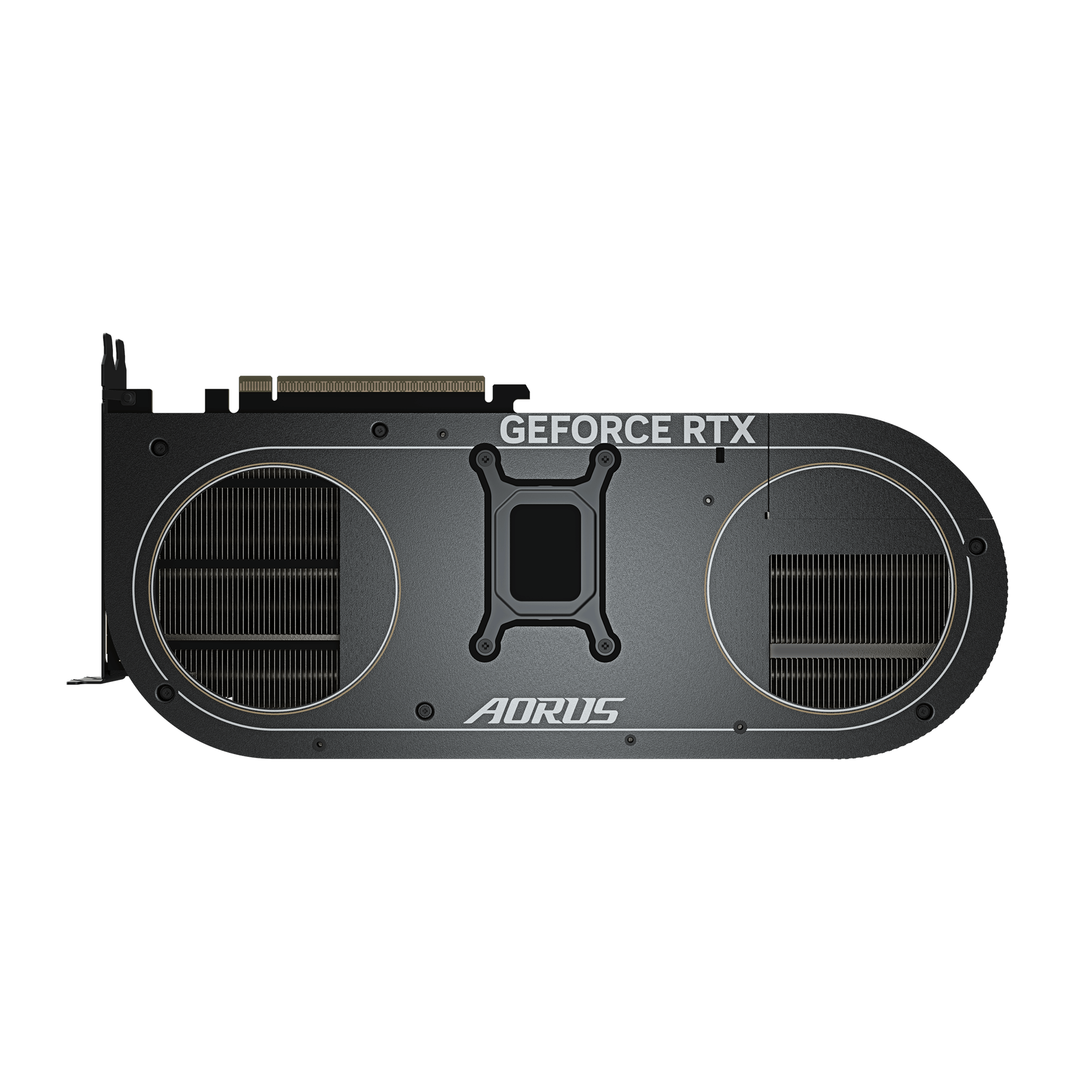

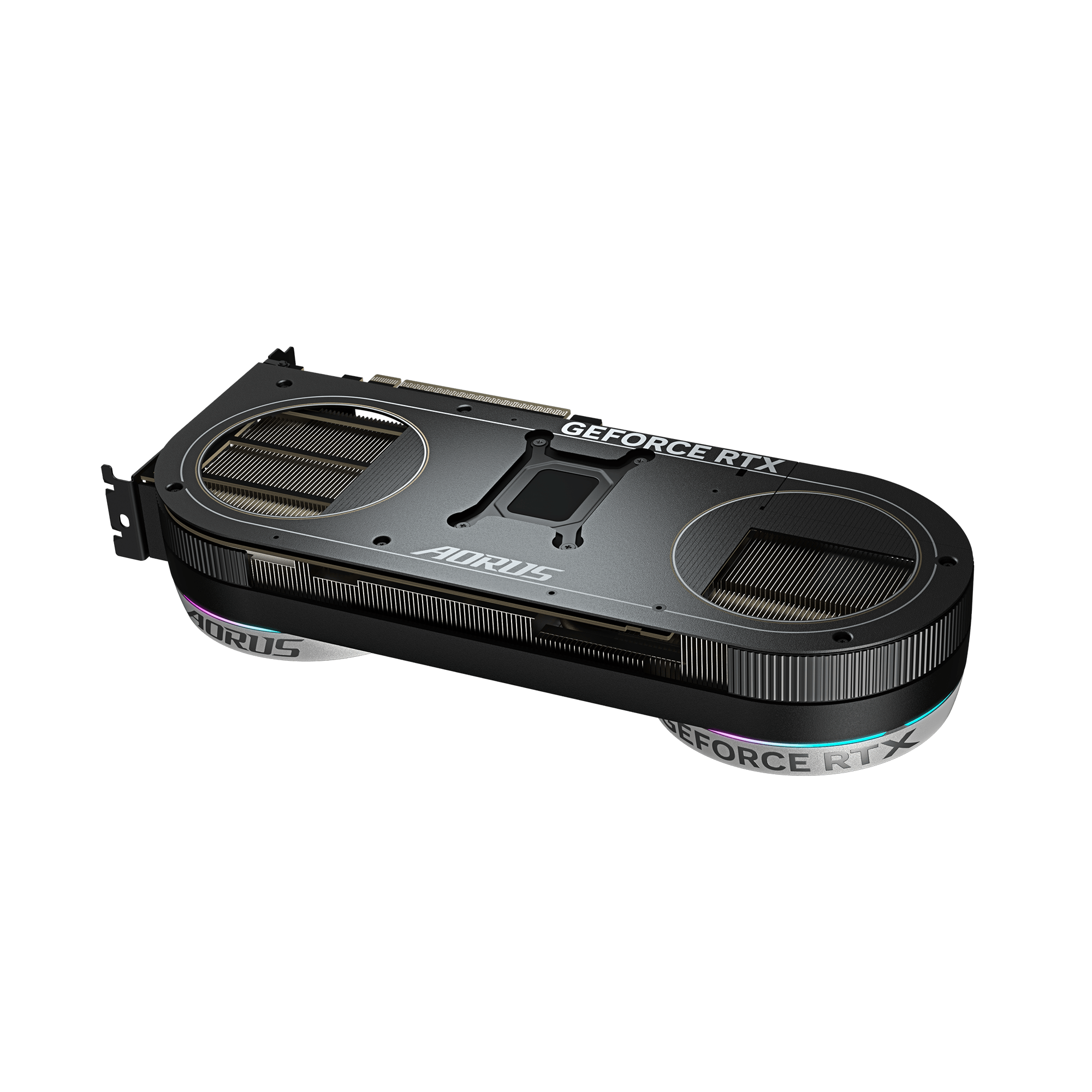

Reinforced Metal Backplate
4 years warranty (Online registration required)

2715 MHz (Reference card : 2512 MHz)

36,800฿

GIGABYTE AORUS RTX™ 5070 12G Specs
Graphics Engine	NVIDIA® GeForce RTX™ 5070 (Blackwell Architecture)
CUDA® Cores	6144 Units
Bus Standard	PCI Express 5.0
PCB Form Factor	ATX
Engine Clocks & VRAM Architecture
Engine Clock Speed	2715 MHz (Factory OC) (Reference Spec: 2512 MHz — +203 MHz Boost)
Video Memory Config	12GB GDDR7
Memory Interface / Speed	192-bit / 28 Gbps
Physical Footprint & Thermal Power
Card Dimensions	309 x 132 x 55 mm (L x W x H)
Slot Footprint	Approx. 2.75-Slot Profile
Power Requirement	750W Minimum System Power Recommended
Power Connector	1 x 16-pin (12V-2×6)
Display I/O & Bundled Accessories

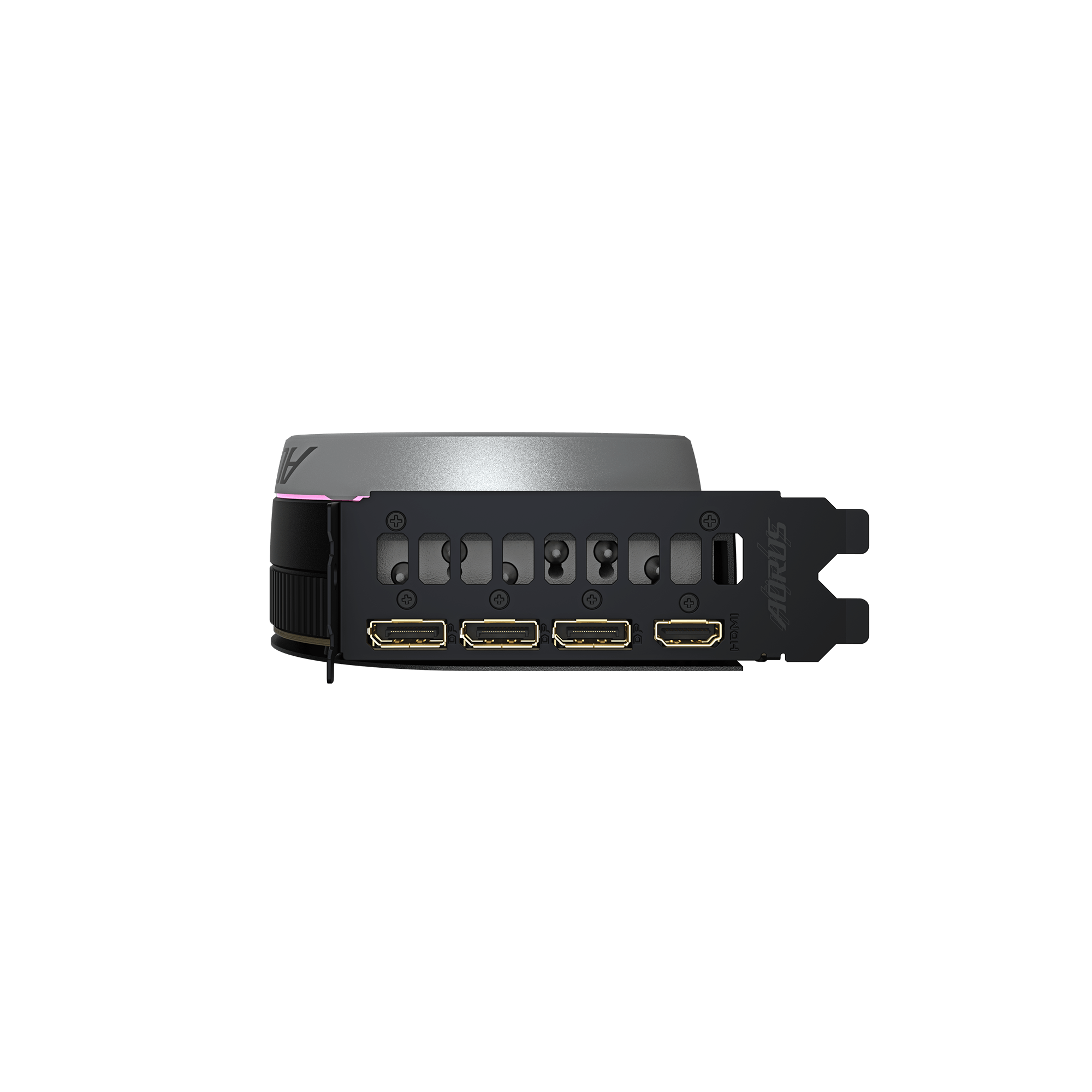

Standard Output Connectors	3 x DisplayPort 2.1b 1 x HDMI 2.1b
Max Displays / Resolution	4 Displays / 7680 x 4320 (8K Digital Max)
Bundled Accessories	Magnetic Backplate Cover VGA Holder Kit (Anti-Sag Bracket) 1 x 12V-2×6 to 2 x PCIe 8-pin Adapter Cable AORUS Metal Emblem Sticker & Documentation
